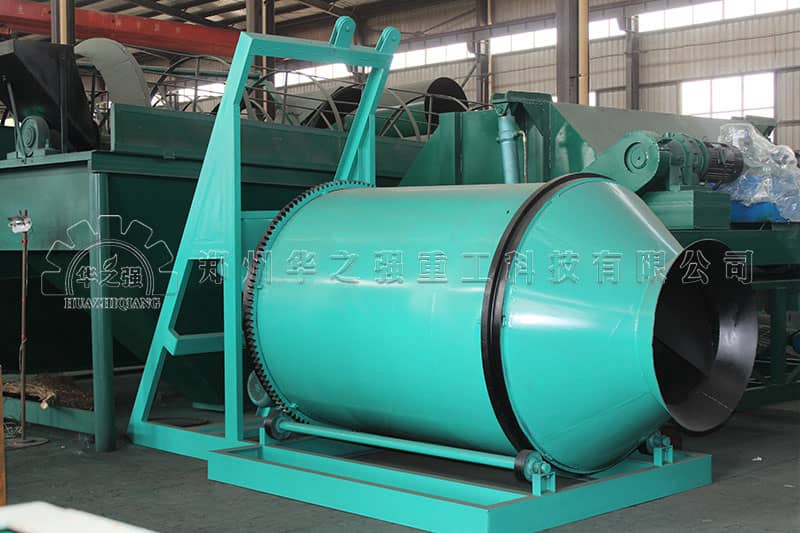

BB肥搅拌机

产品简介:
BB肥搅拌机
用途及特点:

该系列BB肥设备是我司研制的新型搅拌(混合)设备。该机突出的优点是混合量大、便于配方、针对性强,克服了因物料比重和颗粒度不同在向下流动过程中混合料造成的分流现象,提高了配料精度。而且该产品结构简单、容易操作、便于维修,大大减小了设备投入,从而节省了人力、财力和能耗。

BB Fertilizer Blender
Use and Features:

The series BB fertilizer equipment is a new blending (mixing) equipment developed by our company. The advantages of the machine are large mixing amount, easy formulation and strong pertinence. It overcomes the distributary phenomenon caused by the mixture in the downward flow process because of the proportion of material and the different granularity, and improves the proportioning precision. The product is simple in structure, easy to operate and easy to maintain, greatly reducing equipment investment, thus saving labor force, financial resources and energy consumption.

结构简述

整机可分为三大部分:
1.机架部分:机器工作体固定在机架上,该机的机架均采用优碳钢板、槽钢焊接而成,并通过了严格的产品工艺要求,已达到本机所使用的目的;
传动连接部分:电动机带动皮带轮、三角带、减速机传动,安装于减速机上的齿轮于机体齿轮相咬合,从而带动筒体工作:

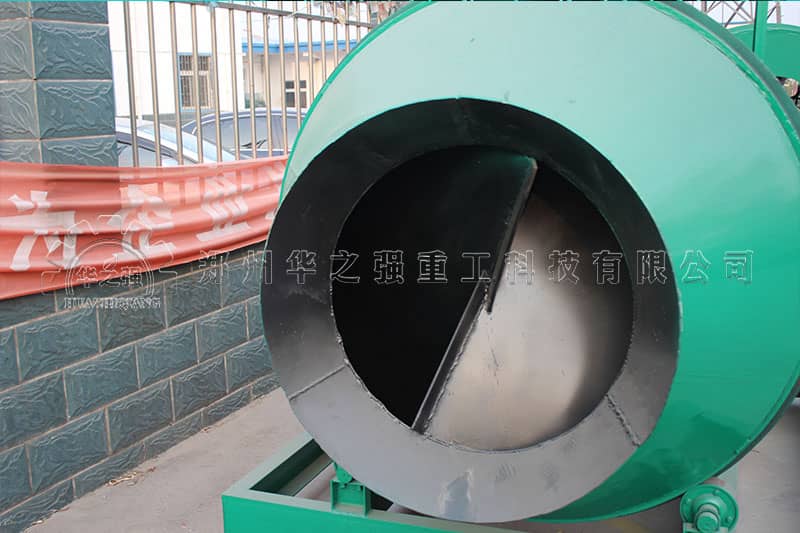

2.筒体工作部分:该机筒体部分采用优碳钢板加工而成。筒体内壁设有螺旋搅拌叶片,在筒体工作的同时,物料从进料口进入,在螺旋搅拌叶的翻、转下使物料均匀搅拌,物料比重和颗粒度流动过程中混合料造成的分流现象。

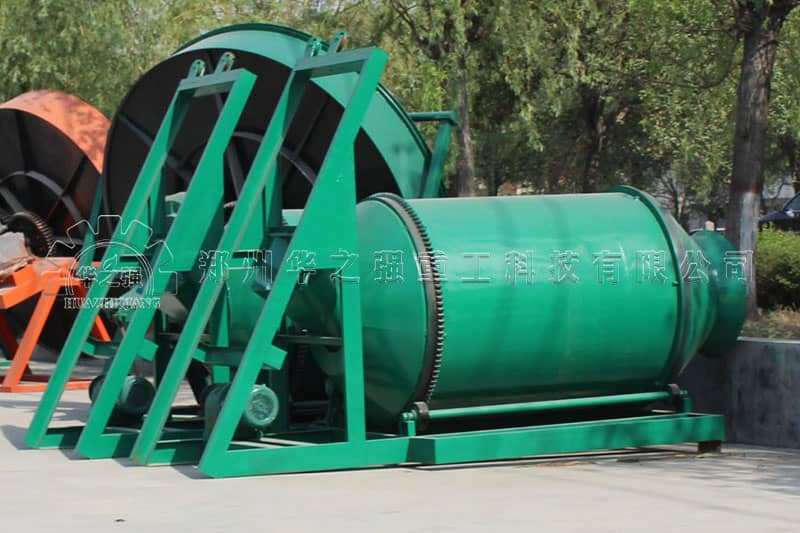

3.爬斗送料部分:该机爬斗送料部分设计良好。爬斗的导轨部分均采用品质好的槽钢制造而成,加以合理的角度设计,使整体运行平稳,客服了以往因高度限制造成的提升斗上料难、容易跑偏的问题。

技术参数

型号 生产能力
(t/h)
功率
(kw)
混合量(次/批)
 (times/batch)
ZYC-1250 1-5 7.5+4 500kg
ZYC-1500 2-6 7.5+4.5 750kg
ZYC-2000 3-8 11+4.5 1000kg
